High-Power Multi-Head UV LED Spot Curing Equipment

Name: High-Power Multi-Head UV LED Spot Curing Equipment
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: Lampu Sorot UVLED
Price: 499 USD
Availability: InStock

Semua produk

Sistem Penyembuhan UV LED
(64)

Peralatan Perawatan LED UV
(75)

Lampu Curing UV LED
(32)

Solusi Penyembuhan UV
(46)

Sinar UV Curing
(32)

Sistem Konveyor UV Curing
(50)

Ruang Perawatan UV
(44)

Senter UV LED
(29)

Cahaya Hitam Ultraviolet
(18)

Mesin Pengering UV
(24)

Lampu UV Genggam
(38)

Lampu sterilisasi
(10)

Perekat UV Cure
(14)

UV LED Spot Curing System
(10)

Sertifikasi

Ulasan pelanggan

Kami memiliki kerjasama untuk waktu yang lama, ini adalah pengalaman yang baik.

—— mike

Sangat berharap untuk kita bisa kerjasama waktu berikutnya segera.

—— Boke

Saya suka senter leduv Anda sangat genggam dan pengoperasiannya sangat mudah.

—— Christophe

Lampu UV sangat meningkatkan efisiensi mesin sablon kami, luar biasa!

—— Alfie

Kualitas Unit Pengeringan UV sangat baik; saya telah menggunakannya selama lebih dari setahun tanpa masalah apapun.

—— Oliver

Lampu ini sangat cocok untuk mengeringkan sablon pada kemasan kami. Saya suka sekali.

—— Ethan

I 'm Online Chat Now

High-Power Multi-Head UV LED Spot Curing Equipment

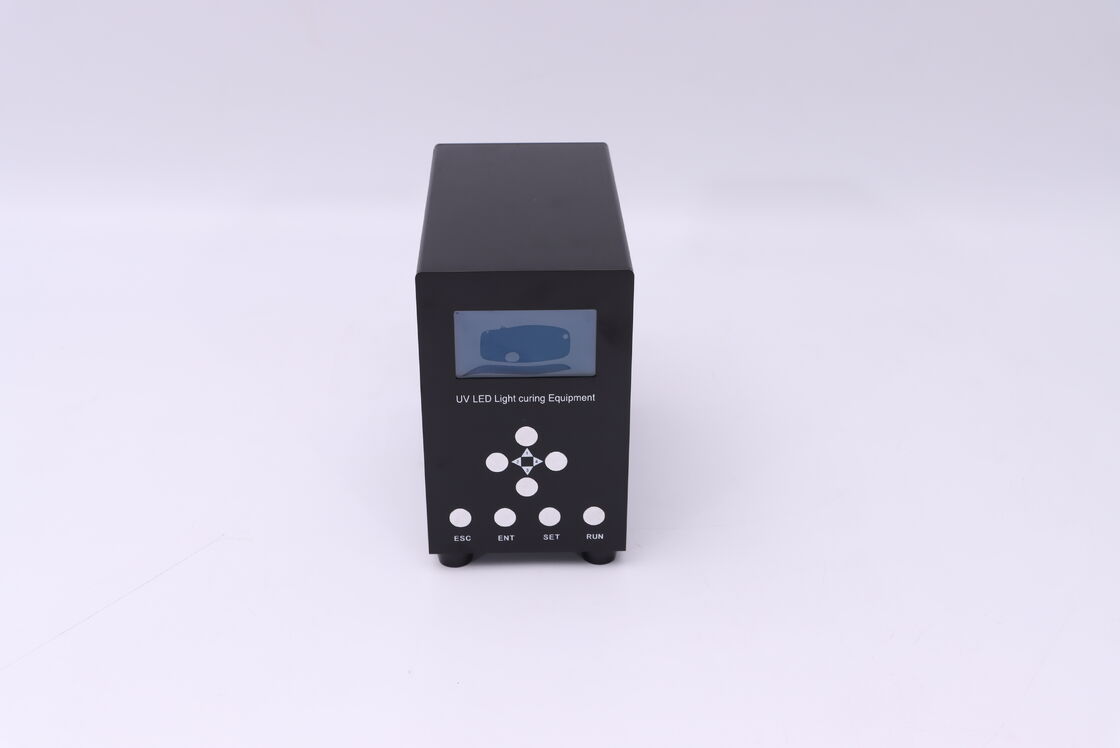

Gambar besar : High-Power Multi-Head UV LED Spot Curing Equipment

Detail produk:

Tempat asal:	Cina
Nama merek:	CG
Sertifikasi:	CE*RoHS
Nomor model:	Lampu Sorot UVLED

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	499USD
Kemasan rincian:	kotak kayu
Waktu pengiriman:	5-8 Hari Kerja
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	10 set/hari

Kontak

High-Power Multi-Head UV LED Spot Curing Equipment

Deskripsi

Metode Pengendalian:

PLC/Ganti sinyal/Level

Jaminan:

Setahun

Panjang gelombang:

365/385/395/405nm (opsional)

Aplikasi:

Pengawetan yang presisi

Menyoroti:

UV LED Spot Curing Equipment

Multi-Head UV LED Curing Equipment

High-Power Multi-Head UV LED Spot Curing Equipment

Product Overview

The UV LED spot curing system delivers stable, high-intensity UV energy through multiple independently controlled channels, enabling fast and repeatable curing of UV adhesives, coatings, and encapsulation materials. The system can be equipped with up to four independent curing heads, offering exceptional flexibility for automated production lines, laboratory testing, and precision assembly processes.

Technical Specifications

Parameter	Specification	Parameter	Specification
Light Source	UV LED	Wavelength	365nm / 385nm / 395nm / 405nm
Control Channels	1-4 Independent Channels	Output Intensity	Adjustable
Operation Mode	Continuous / Timer	Cooling Method	Air Cooling
Control Interface	LCD Display	Input Voltage	AC 100-240V, 50/60Hz
LED Lifetime	>20,000 Hours	External Control	PLC / I/O Trigger

Product Details Description

Applications

Electronics Manufacturing

Medical Device Manufacturing

Optical & Photonics Industry

Product Features

Multi-Channel Independent Control

Each UV curing head can be programmed individually for:

Output intensity
Exposure time
Trigger mode
Operating sequence

This allows multiple curing processes to run simultaneously.

High Irradiance Output

Provides concentrated UV energy exactly where needed. Suitable for:

UV adhesive bonding
Optical alignment
PCB encapsulation
Medical catheter assembly
Camera module manufacturing

Intelligent LCD Control Interface

The front-panel LCD display allows operators to:

Monitor channel status
Adjust intensity levels
Set curing time
Store process parameters

Simple operation reduces setup time and improves production consistency.

Low Heat Generation

Compared with traditional mercury lamps, UV LED technology significantly reduces thermal stress on sensitive components. Ideal for:

Plastic parts
Optical lenses
Electronic assemblies
Medical components

Frequently Asked Questions

What is a UV LED Spot curing system?

UV LED Spot curing system is a precision curing device that delivers concentrated UV light through a small spot, ideal for curing UV adhesives, coatings, and encapsulants in electronics, medical devices, and optical assemblies.

What wavelengths are available for UV LED point light sources?

Common wavelengths include 365nm, 385nm, 395nm, and 405nm. The best wavelength depends on the UV adhesive, coating, or ink being used.

What industries use UV LED Spot curing systems?

UV LED Spot curing systems are widely used in electronics manufacturing, medical device assembly, semiconductor packaging, optical bonding, and laboratory research.

Can the UV intensity be adjusted?

Yes. The UV intensity and exposure time can be independently adjusted to meet different curing process requirements.
