395nm Dual-lane UV LED Conveyor System for Camera Modules / Micro-speakers

Name: 395nm Dual-lane UV LED Conveyor System for Camera Modules / Micro-speakers
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-GHL-W400-360*27-A/C
Price: 1,750.00 USD
Availability: InStock

Semua produk

Sistem Penyembuhan UV LED
(64)

Peralatan Perawatan LED UV
(75)

Lampu Curing UV LED
(32)

Solusi Penyembuhan UV
(46)

Sinar UV Curing
(32)

Sistem Konveyor UV Curing
(48)

Ruang Perawatan UV
(44)

Senter UV LED
(29)

Cahaya Hitam Ultraviolet
(18)

Mesin Pengering UV
(24)

Lampu UV Genggam
(38)

Lampu sterilisasi
(10)

Perekat UV Cure
(14)

Sertifikasi

Ulasan pelanggan

Kami memiliki kerjasama untuk waktu yang lama, ini adalah pengalaman yang baik.

—— mike

Sangat berharap untuk kita bisa kerjasama waktu berikutnya segera.

—— Boke

Saya suka senter leduv Anda sangat genggam dan pengoperasiannya sangat mudah.

—— Christophe

Lampu UV sangat meningkatkan efisiensi mesin sablon kami, luar biasa!

—— Alfie

Kualitas Unit Pengeringan UV sangat baik; saya telah menggunakannya selama lebih dari setahun tanpa masalah apapun.

—— Oliver

Lampu ini sangat cocok untuk mengeringkan sablon pada kemasan kami. Saya suka sekali.

—— Ethan

I 'm Online Chat Now

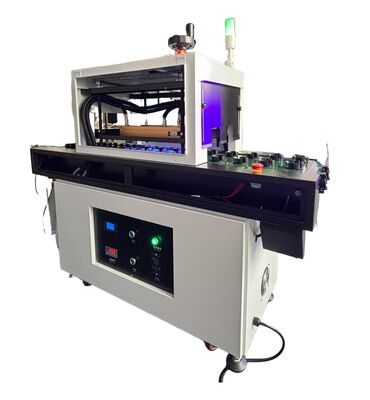

395nm Dual-lane UV LED Conveyor System for Camera Modules / Micro-speakers

Gambar besar : 395nm Dual-lane UV LED Conveyor System for Camera Modules / Micro-speakers

Detail produk:

Tempat asal:	Cina
Nama merek:	CG
Sertifikasi:	CE*RoHS
Nomor model:	CG-GHL-W400-360*27-A/C

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	3500-5900usd 1 set
Kemasan rincian:	kotak kayu
Waktu pengiriman:	10-15 hari kerja
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	10 set/hari

Kontak

395nm Dual-lane UV LED Conveyor System for Camera Modules / Micro-speakers

Deskripsi

Kata kunci:	Sistem Conveyor UV Curing	Kekuatan:	1500W
Tegangan masukan:	AC85-265V	Panjang gelombang:	395nm/365nm
Cara Pendinginan:	Pendinginan Air	Intensitas UV:	18W/CM2
Jaminan:	2 tahun	Kemasan:	kotak kayu
Menyoroti:	395nm UV LED conveyor system , Dual-lane UV curing conveyor , UV conveyor for camera modules

Dual-lane UV LED Conveyor System

LED UV curing technology is a cutting-edge solution that utilizes targeted UV radiation to rapidly cure a variety of photo-sensitive materials like inks, resins, and coatings. This innovative approach delivers high speed and superior results, establishing it as the preferred method in today's market.

Technical Specifications

Model	CG-GHL-W400-360*27-A/C	Lamp Color	Rose Golden
Power	1500W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Method	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

System Advantages

Energy-saving - 1000W LED UV equals 6000W mercury lamp drying effect
Environmentally friendly - No mercury, no ozone production, and VOC discharge
Instant operation - No warm-up required, turns on/off instantly
Low temperature operation - Suitable for PE and film ink curing
Long lifespan - 20,000 hours of operation

Product Details Description

Frequently Asked Questions

Q: What's the wavelength of the LED UV lamp?

A: Usually 395-405nm. The 395nm/385nm is used for printing machines, while 365nm is for adhesives.

Q: What's your LED brand?

A: LG/Seoul

Q: What's the material of lamp and lens?

A: Aluminium/quartz

Q: What's the cooling method for the LED UV curing system?

A: Water or air cooling

Q: Can the UV intensity be changed?

A: Yes, the UV intensity is adjustable from 0%-100%

Q: What's the maximum energy of the UV LED lamp?

A: It depends on emitting time - the longer the duration, the higher the total energy output.

Q: What's the lifespan of the UV LED curing lamp?

A: Our warranty is 2 years for all systems (chiller/power supply), with most units reaching 5 years of operation.

Peringkat Keseluruhan

5.0

Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat

5 bintang

100%

4 bintang

3 bintang

2 bintang

1 bintang

Semua Ulasan

Hassan

Egypt Nov 14.2024

Bermanfaat (32)

The whole machine is fantastic; it was made perfectly to my specifications, and the lights are also very effective.

Augustine

Mexico Aug 20.2024

Bermanfaat (55)

The light output is very uniform, with no obvious dark areas. When covering a large area, it can ensure that the product edges and center receive consistent light, which greatly improves the yield rate.
