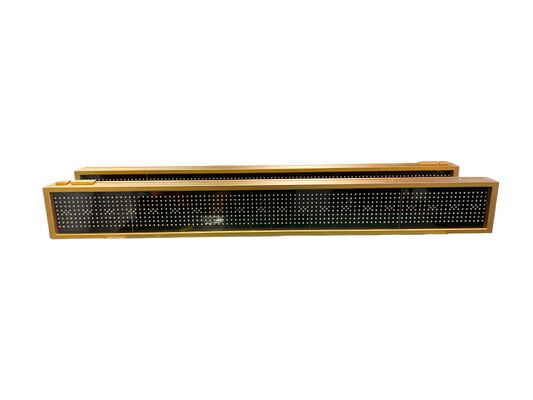

2400W High-power Water Cooling LED UV Curing System with 18W/CM2 Intensity for UV Ink Drying

Gambar besar : 2400W High-power Water Cooling LED UV Curing System with 18W/CM2 Intensity for UV Ink Drying

Detail produk:

Tempat asal:	Cina
Nama merek:	CG
Sertifikasi:	CE*RoHS
Nomor model:	CG-CT3-40027-1500A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1SET
Harga:	4000-6200usd 1 set
Kemasan rincian:	kotak kayu
Waktu pengiriman:	10-15 hari kerja
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	10 set/hari

Kontak

2400W High-power Water Cooling LED UV Curing System with 18W/CM2 Intensity for UV Ink Drying

Deskripsi

Kata kunci:	Sistem Penyembuhan UV LED	Kekuatan:	2400W
Tegangan Masukan:	AC85-265V	Panjang gelombang:	395nm
Cara Pendinginan:	Pendinginan Air	Intensitas UV:	18W/CM2
Jaminan:	2 Tahun	kemasan:	kotak kayu

2400W High-power Water-cooled UV Lamps for Wide-width Roll Paper

LED UV Curing System Description

For the drying of UV series materials—be it resin, ink, varnish, adhesive, or coating—the LED UV curing lamp offers a contemporary, high-performance method. This new technology utilizes ultraviolet light to deliver quick, high-quality curing.

LED UV Curing System Datasheet

Model	CG-CT10-1000*50-2400A	Lamp Color	Rose Golden
Power	2400W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Way	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

LED UV Curing System Advantages

Energy-saving - normally 1000W LED UV equals 6000W mercury lamp drying effect
Environment friendly - No mercury, no ozone making and VOC discharge
No warm-up - turn on/off instantly
Low temperature - can be used for PE and film ink curing
Long lifespan - 20,000 hours

Product Details

UV Curing Conveyor Systems FAQ

Q1: What's the wavelength of the LED UV lamp?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machines, 365nm is for adhesive.

Q2: What's your LED brand?

A2: LG/Seoul

Q3: What's the material of lamp and lens?

A3: Aluminium/quartz

Q4: What's the cooling way for the LED UV curing system?

A4: Water or air cooling

Q5: Can the UV intensity be changed?

A5: Yes, the UV intensity is changeable from 0%-100%

Q6: What's the maximum energy of UV LED lamp?

A6: It depends on emitting time - the longer the higher energy output total amount.

Q7: What's the lifespan of the UV LED curing lamp?

A7: Our warranty is 2 years for all system (chiller/power supply), mostly can reach 5 years.
