Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate

Name: Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-GHL-W400-360*27-A/C
Price: 1,750.00 USD
Availability: InStock

Semua produk

Sistem Penyembuhan UV LED
(56)

Peralatan Perawatan LED UV
(75)

Lampu Curing UV LED
(32)

Solusi Penyembuhan UV
(37)

Sinar UV Curing
(30)

Sistem Konveyor UV Curing
(38)

Ruang Perawatan UV
(41)

Senter UV LED
(24)

Cahaya Hitam Ultraviolet
(18)

Mesin Pengering UV
(24)

Lampu UV Genggam
(41)

Lampu sterilisasi
(10)

Perekat UV Cure
(10)

Sertifikasi

Ulasan pelanggan

Kami memiliki kerjasama untuk waktu yang lama, ini adalah pengalaman yang baik.

—— mike

Sangat berharap untuk kita bisa kerjasama waktu berikutnya segera.

—— Boke

Saya suka senter leduv Anda sangat genggam dan pengoperasiannya sangat mudah.

—— Christophe

Lampu UV sangat meningkatkan efisiensi mesin sablon kami, luar biasa!

—— Alfie

Kualitas Unit Pengeringan UV sangat baik; saya telah menggunakannya selama lebih dari setahun tanpa masalah apapun.

—— Oliver

Lampu ini sangat cocok untuk mengeringkan sablon pada kemasan kami. Saya suka sekali.

—— Ethan

I 'm Online Chat Now

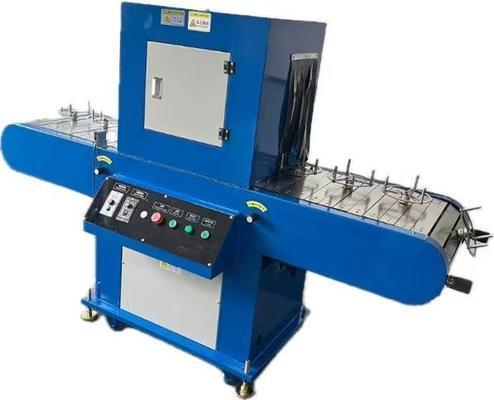

Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate

Gambar besar : Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	CG
Sertifikasi:	CE*RoHS
Nomor model:	CG-GHL-W400-360*27-A/C

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	3500-3900usd 1 set
Kemasan rincian:	kotak kayu
Waktu pengiriman:	10-15 hari kerja
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	10 set/hari

Kontak

Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate

Deskripsi

Kata kunci:	Sistem Conveyor UV Curing	Kekuatan:	1500W
Tegangan Masukan:	AC85-265V	Panjang gelombang:	395nm/365nm
Cara pendingin:	Pendingin air	Intensitas UV:	18W/CM2
Jaminan:	2 tahun	Kemasan:	kotak kayu
Menyoroti:	UV drying system for PCBs , PET PCB UV curing conveyor , Industrial UV drying belt system

UV Curing Conveyor Systems Led Uv Light With Conveyor Belt Dry PET PCB

UV Curing Conveyor Systems Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

UV Curing Conveyor Systems Datasheet

Model	CG-GHL-W400-360*27-A/C	lamp color	Rose golden
Power	1500W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV Curing Conveyor Systems Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink curing .
Long lifespan, 20000hours .

Product Details Description

Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate 0

Dry PET PCB UV Drying Systems With Belt for Different Industrial Applications CE RoHS Certificate 2

UV Curing System Application

UV Curing Conveyor Systems FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
