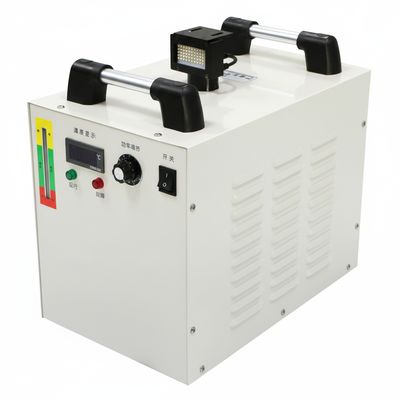

UV High Power LED Water Cooling LED UV Curing Lamp AC85V 1200W For Label Printing

LED UV Curing Lamp UV LED Curing Lamp System For Label Printing​

LED UV Curing Lamp Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

LED UV Curing Lamp​ Datasheet

LED UV Curing Lamp​ Advantages

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and VOC discharge.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink cuing .
5. Long lifespan, 20000hours .

LED UV Curing Lamp​  FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2: LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
